Key attributesDescription：
| Model Number | S2302 |
| Material | Anti-flammable PC +ABS |
| Place of Origin | Guangdong, China |
| Brand Name | ODM/OEM |
| Type | Floor Heating Parts |
| Certification | ISO9001/CE |
| Feature | Keypad Lockout |
| Screen | LCD |
| Function | Control temperature |
Specification：
| Programmability | 7 Day Programmable |
| System Switch | HEAT/COOL MODE Switch |
| Power Supply | 2 x AAA 1.5V Lithium Batteries |
| Display accuracy | ±1°C (at 20°C) |
| Switchable Voltage | 24 V AC / DC,…250 V AC; 50 Hz |
| Switchable Current | 6 A (2 A inductive load) |
| Temperature Range | 0°C-40°C in 0.1°C |
| Setpoint Range | 5°C-35°C in 0.5°C |
| Storage Temperature | -10°C to +60°C |
| Dimensions | 119 x 80 x 26 mm |
Product Description：

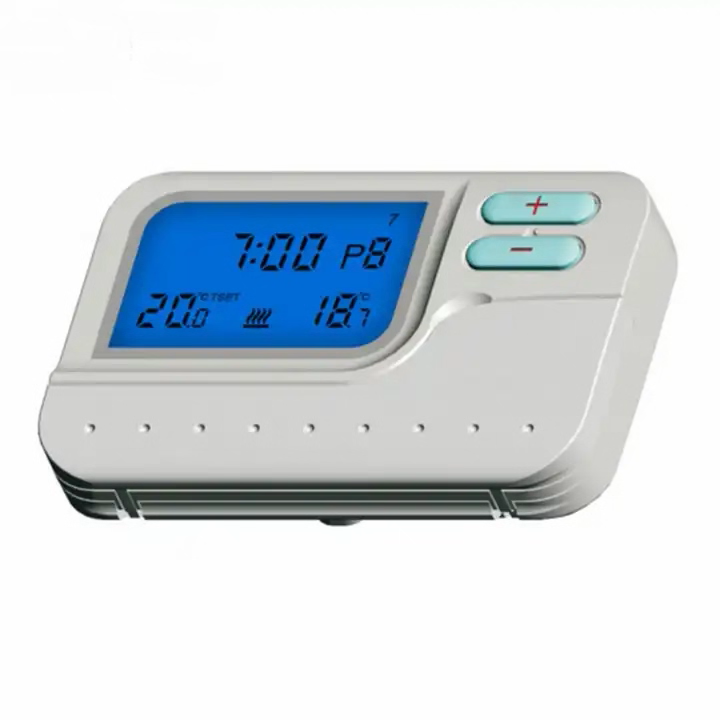

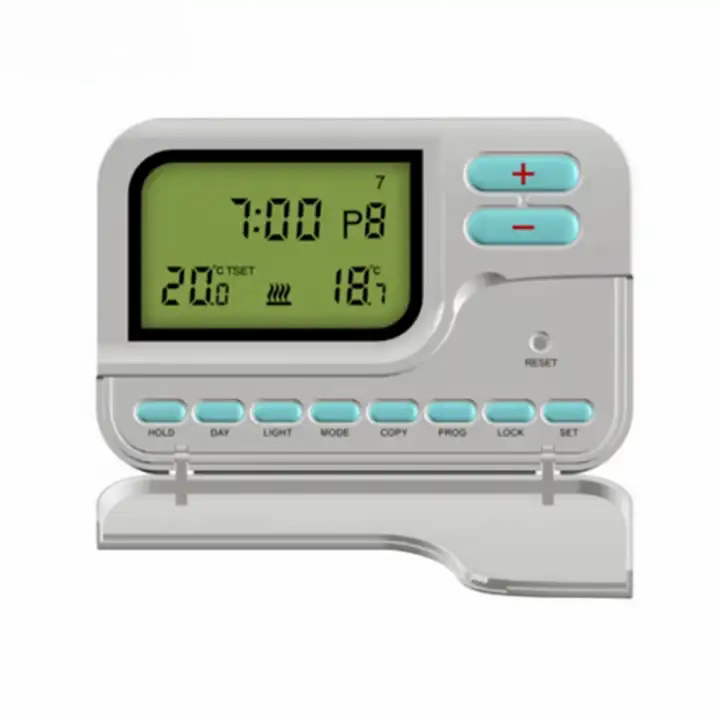

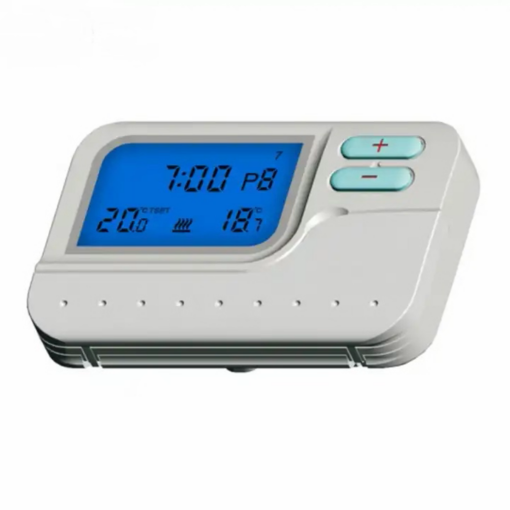

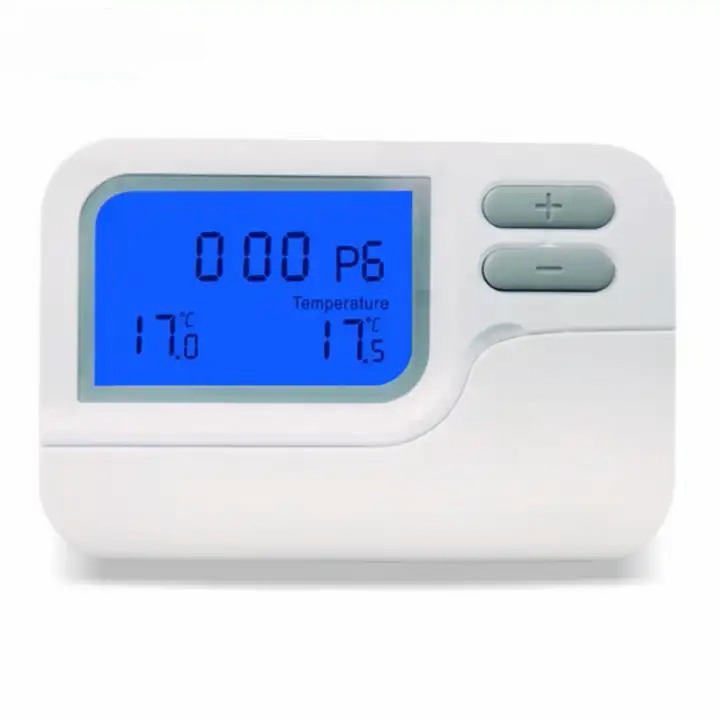

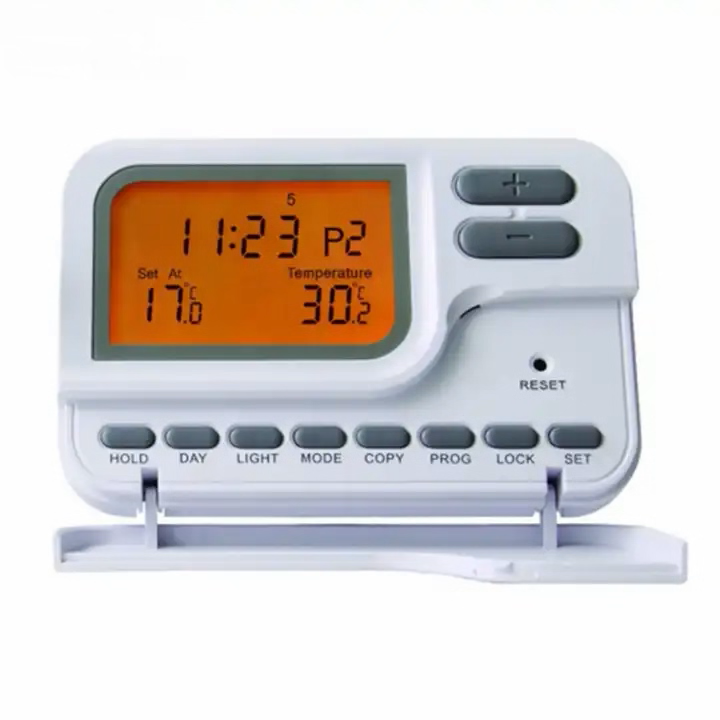

• Large, easy to ready clear LCD display

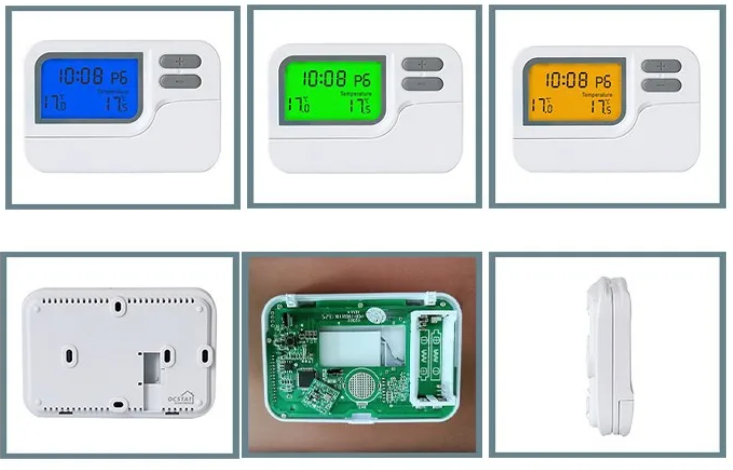

• Various backlight color optional
• Room Temperature Calibration adjustment (in -3~+3°C)
• Switching sensitivity adjustable
• Heat Pump
• Keypad Lockout
• Factory pre-set programme

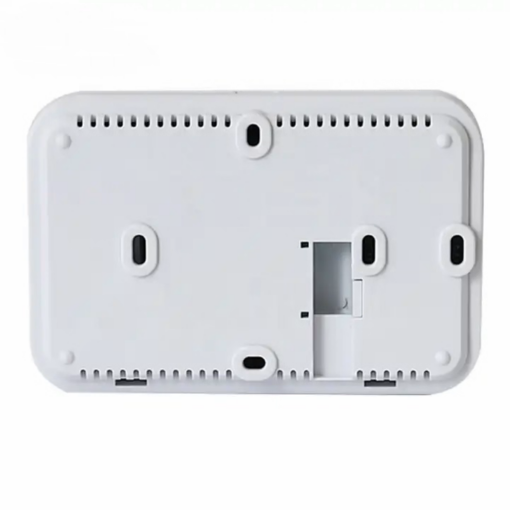

• Easy installation
